Belt Conveyor

Belt Conveyor
Product Introduction

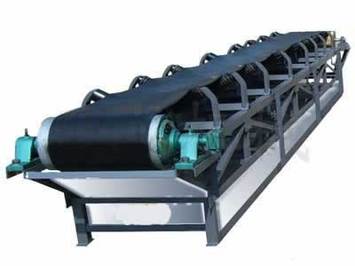

A general stationary belt conveyor.
Capacity
78-2995 t/h
Product Improvement
Equipped backstop device
Selections of electric drum, electric drum with external motor or electric reducer according to the working condition

Advantages

Belt conveyer

  • Rubber or plastic bands with oil resistance, acid and alkali resistance are adopted for materials with special properties.

  • The head of conveyor belt with vulcanized linkage prolongs the service life greatly.

  • Stable conveying, no relative movement between materials and conveyer belt

  • Large capacity, simple structure, convenient maintenance, low operation cost and wide application.

Work Feature

Belt conveyer



Product Structure

Belt conveyer

Application

Belt conveyer can be widely used in chemical industry, coal, mine, electrical department, light industry, grain, transportation department etc. It is suitable for conveying various materials in granular or powder.

Technical Parameters

Belt Width B (mm)

Carrying Idler Type

Belt Speed (m/s)

500

650

800

1000

1200

1400

Trough Idler

Conveying Capacity Q (t/h)

0.8

78

131

1.00

97

164

278

435

655

891

1.25

122

206

348

544

819

1115

1.6

156

264

445

696

1048

1427

2.0

191

323

546

853

1284

1748

2.5

232

391

661

1033

1556

2118

3.15

824

1233

1858

2528

4.0

2202

2995
