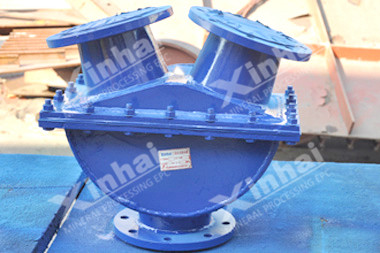

Y-Ball Valve

Y-Ball Valve
Product Introduction
One valve control two pipes
Pressure
≤0.7MPa
Product Improvement
Automatic control, one ball valve can automatically open and close the valve
This design has obtained national patent in May 2011, patent number: ZL201020575061.8.

Advantages

Y-Ball Valve

  • Yantai Group wear – resistant rubber as the liners of Y– ball valve with 128% wear resistance index

  • Service lige is 2-4 times longer than traditional valve.

  • The ball wrapped by Yantai Group wear – resistant rubber which can effectively open and close the two valve ports in Y – ball valve.

  • Slurry flow driving ball into a pipe orifice and close it; slurry pass by another pipe orifice. So it will not cause blockage.

  • The Y – ball valve relying on the pressure of slurry to change the valve does not need people to control realizing automatic control, simple and flexible. Adopting Y- ball valve realizes pipeline setting of two pumps with one valve.

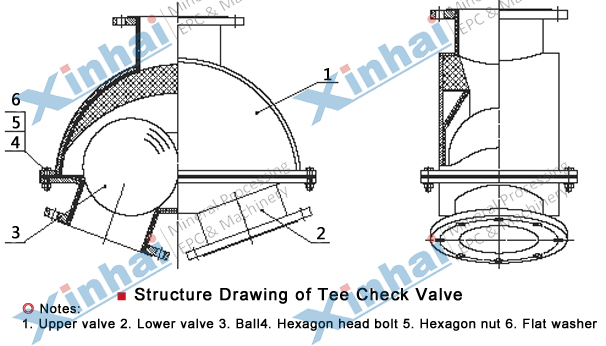

Product Structure

Tee Check Valve

Y-Ball Valve

Outstanding ball valve design of opening and closing, no blocking; creative opening and closing device control the valve by slurry pushing the ball.

Y- Ball valve realizes pipeline setting of two pumps with one valve to reduce the investment cost by only buying one valve and saving one pipeline.

Application

Y-Ball Valve

Yantai Group Y-Ball valve is mainly used for pulp, slags, tailings, drainage system of spare pump and chemical corrosive substance delivery.

Technical Parameters

Nominal Pressure (MPa)

0.7

Diameter Range (mm)

DN65-500

Test Pressure

Seal

1.0

Test Medium

Water

Intensity

1.5

Water

Working Pressure (MPa)

< 1.0

Working Medium

Slurry, Slag, Tailings, etc.
