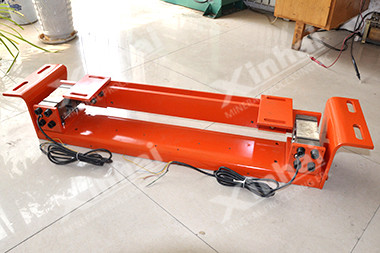

Electronic Belt Scale

Product Introduction: A weighting equipment for metering belt conveying capacity with simple structure and advanced technology
Capacity: ≤1200 t/h
Product Improvement: EBM 2011 is a new generation of continuous weighing management system, the control core adopts German Siemens ddLC, stability and reliability has been greatly improved

CONSULT
Leave Message
Email

Advantages

The system can automatically control the feeding quantity of belt machine according to the preset flow rate.
High efficiency and energy saving, durable and wear-resistant
The system reserves a standard communication interface. That is convenient for production management and scheduling.

Application

The displayed part adopt the high-grade large size touch screen to replace the traditional digital tube and liquid crystal module which has friendly man-machine interface and rich display contents. This product can fully replace the traditional weighting totalizer instrument.

Technical Parameters

Model	Suitable Belt Conveyor	Load (kg)	Setting Angle	Belt Speed (m/s)	Weight (kg)
PDC500	TD500	0 ~300	≤ ±20。	≤ 3	40.5
PDC650	TD650	0 ~300	≤ ±20。	≤ 3	43.6
PDC800	TD800	0 ~300	≤ ±20。	≤ 3	47.8
PDC1000	TD1000	0 ~300	≤ ±20。	≤ 3	53.5
PDC1200	TD1200	0 ~300	≤ ±20。	≤ 3	59.6
