Alloy Slurry Pump

Product Introduction: A slurry pump with wear and corrosive resistance
Capacity: Flow≤2333m³/h
Product Improvement: Slurry pump with resistance to wear, corrosion and impact is made of high hardness alloy cast iron

CONSULT
Leave Message
Email

Advantages

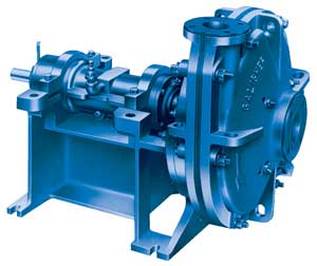

Yantai Group alloy slurry pump has cantilever type and horizontal type, and the main working parts are impeller and casing. Impeller device in casing is located on shaft, and connects with the prime motor.

In addition, double choices of high-chromium alloy and wear-resistant liners; double choice of packing sealing and centrifugal sealing

Product Principle

Yantai Group alloy slurry pump achieves to increase pressure for conveying medium by centrifugal force. This is actually a process of energy transfer and conversion. The mechanical energy of high-speed rotation motor is transferred to pressure energy and kinetic energy of pumping the liquid by the pump vanes.

Application

Alloy slurry pump can be widely used in mining, metallurgy, electric power, coal, chemical industry, building materials industry etc. for conveying corrosive and high concentration slurry.

Technical Parameters

Model	Flow	Head	Rotation Speed	Maximum Power	Maximum Efficiency	Impeller Diameter
Model	m³/h	m	rpm	Kw	%	cm
50XPC	12-111	7.7-94	700-1480	55	44.7	3346
80XPC	43-204	8 -70.4	700-1480	75	67.6	33363942
100XPC	61-331	9.7-84.8	700-1480	132	71	33363942
150XPC	111-582	8.7-71.1	490-980	185	75.8	48555863
200XPC	199-948	13-97.5	490-980	355	82.5	58636873
250XPC	272- 1374	14.4-92.4	490-980	500	76.5	63687390
300XPC	477-2333	13.8-79.9	490-980	630	80.4	65708590
