Hydraulic Cone Crusher

Hydraulic Cone Crusher
Product Introduction
Hydraulic cone crusher is a kind of crushing equipment
Production Capacity
5~750t/h
Product Improvement
The supports at both ends of cone crusher main shaft, scientific design of crushing chamber, double insurance control of hydraulic and lubricating system.

Advantages

  • The hydraulic cone crusher owns support at both ends of main shaft which can bear larger crushing force improving the crushing efficiency. Processing capacity is increased 35% ~ 60% than old type spring cone crusher.

  • Scientific design of crushing chamber and laminated crushing principle improve the cube proportion in end product and reduce the needle flake type stone. The particle size becomes more uniform.

  • Double safety control of hydraulic and lubricating system protects the hydraulic cone crusher from overload, and lubricates bearings better.

Work Principle

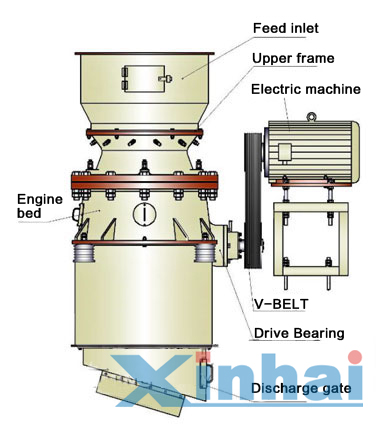

Hydraulic Cone Crusher

Hydraulic cone crusher consists of frame, transmission, hollow eccentric shaft, bowl-shaped bearing, crushing cone, springs and hydraulic pressure station for adjusting discharge opening. During operation, motor drives eccentric shaft shell to rotate through a horizontal axle and a pair of bevel gear. The axle of crushing cone swings with the force of eccentric shaft shell so that the surface of the crushing wall is close to the roll mortar wall from time to time. In this way, the ores and rocks will be pressed and crooked and crushed.

Product Structure

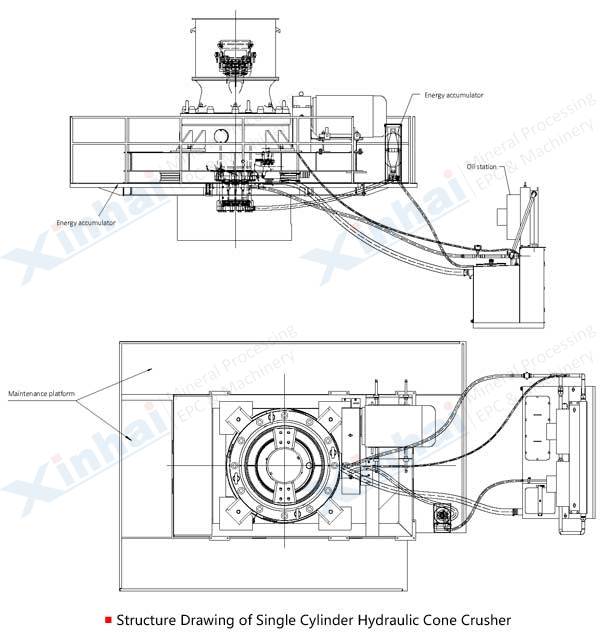

Hydraulic Cone Crusher

Hydraulic cone crushers are widely applied in metallurgical, construction, road building, chemical and phosphatic industry. It is suitable for hard and mid-hard rocks and ores, such as iron ores, copper ores, limestone, quartz, granite, grit stone, etc. Yantai Group as an excellent cone crusher manufacturer provides the most suitable price for you.

Technical Parameters

Model Cavity Inlet Dimension (mm) Max. Feed Size (mm) Min. Outlet Dimension (mm) Max. Feed Dimension (mm) Power
(kW)
Weight
(t)
Stroke Stroke Stroke Stroke Stroke Stroke
PYY100       16 22   16 22   90 6
A 150 120 12 15   39 37
B 130 105 10 11   33 31
C 100 85 7 9   33 30
D 40 32 5 6   31 29
PYY200   18 25   18 25   160 10.6
A 220 180 18 22   35 30
B 150 120 15 19   35 30
C 80 60 9 12   35 30
D 40 32 6 8   35 30
PYY300       25 32   25 32   250 18.5
A 230 190 20 25   45 40
B 150 125 17 20   45 40
C 80 60 10 13   40 35
D 40 32 6 8   40 35
PYY500       25 32 40 25 32 40 315 22.5
A 230 180 22 26 30 50 45 40
B 150 125 19 22 26 48 43 38
C 100 80 12 14 16 40 35 30
D 50 40 8 10 12 30 25 20
