XJB Bar Flotation Cell

XJB Bar Flotation Cell
Product Introduction
A bar flotation cell with self-air suction and mechanical agitation
Effective Volume
1~4m3
Product Improvement
There is a convex bench and an arc-shaped steady flow plate. The convex bench works as the guide groove, which makes the mixture of air and slurry rush to the bottom of tank. And then with the steady flow plate the mixture spreads in the tank uniformly, moving in the shape of W.

Advantages

  • Strong agitation force; nice moving trace of slurry; suitable for the selection of coarse ore with bigger gravity and high sedimentation rate

  • Uniform mixing of slurry, air and reagents

  • Rapid flotation speed

  • Easy to restart after stopping

Work Principle

When the flotation machine works, the motor drives the impeller to revolve, so the centrifugal effect and negative pressure are produced. On one hand, ample air is absorbed and mixed with mineral slurry, on the other hand, the mixed mineral slurry is mingled with additive, meanwhile, the foams are thinning, the mineral is bounded with foams, and floats up to the surface of mineral slurry and the mineralized foam is formed. The liquid surface can be adjusted with the height of adjustment flashboard, so that the useful foams are scraped with squeegee.


Product Structure

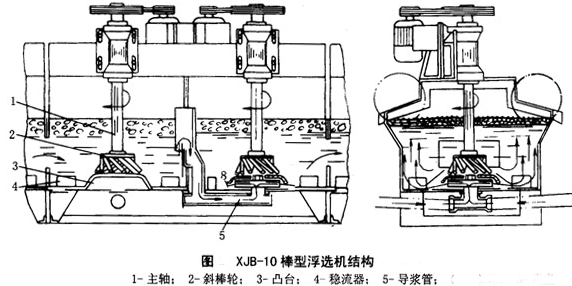

Bar flotation cell has air inflation agitation group consisting of oblique rod wheel, convex plate, arc stabilizer, etc. Impeller is consisted of a disc and 12 bevel cone bars. The rotating speed of bevel cone bar gets faster and faster while downing and agitation force gets stronger accordingly.

Technical Parameters

Model Tank Type Effective Volume(m3) Capacity(m3/min) Impeller Diameter(mm) Impeller Rotation Speed(r.p.m) Motor Power for Agitation(kw) Motor Power for Scraper(kw)) 4 Tank Weight(kg)
XJB-1 Suction Tank 1 1.5-1.7 400 440 5.5 1.5 5344
XJB-1 Direct Flow Cell 1 1.5-1.7 410 410 4 0.8 5344
XJB-1D Suction Tank 1 1.5-1.7 400 440 5.5 1.5 5479
XJB-1D Direct Flow Cell 1 1.5-1.7 410 410 4 0.8 5479
XJB-2 Suction Tank 2 1.5-1.4 450 360 15 1.1 9071
XJB-2 Direct Flow Cell 2 1.5-1.4 540 360 11 1.1 9071
XJB-2D Suction Tank 2 1.5-1.4 450 360 15 1.1 9320
XJB-2D Direct Flow Cell 2 1.5-1.4 540 360 11 1.1 9320
XJB-4 Suction Tank 4 2.0-4 700 280 18.5 1.1 16325
XJB-4 Direct Flow Cell 4 2.0-4 510 280 18.5 1.1 16325
