Since its establishment 20 years, we have been committed to the Research and development of cyanide gold process, technology and equipment, after the constant study of Yantai Group research technicians, we have formed a set of efficient, environmental, energy-saving and economic Gold CIL process.
【Application】:Mainly applies for the process of above 1g/t grade gold ore and gold ore with large bearing ore volume: silver, platinum, copper, etc.
Recommend Gold flotation process for small gold plant.
【Process】:
-
Leaching Pulp Preparation
-
Cyaniding Leaching and Carbon Adsorption
-
Gold Loaded Carbon Desorption
-
Pregnant Solution Electrodeposit
-
Carbon Acid Regeneration
-
Leaching Pulp
Gold CIL Process Description：
1.

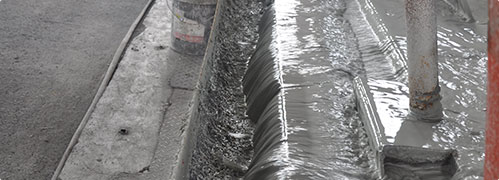

Leaching Pulp Preparation
Equipment：
Flow：
Add the gold ore slurry into 9 leaching agitation tanks, pour in cyanide solution in first 2 tanks , activate carbon in the following 7 tanks for the reverse-absorption process (the number of tanks depend on the capacity size).
Advantages of leaching pulp in Gold CIL process:
- Greatly reduce the number of leaching tank;
- Shorten the time of gold staying in the cyanide pregnant solution;
- Reduce the capital backlog in gold staying process, get gold quickly, fast capital return.
2.

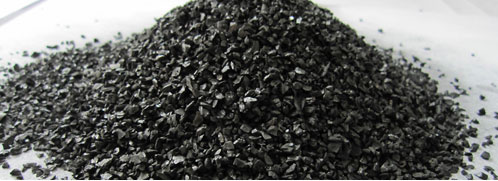

Cyaniding Leaching and Carbon Adsorption
Equipment：
Material:
specialcoconut shell activated carbon
Material feature:
coconut shell activated carbon is featured with small hole, high reaction activity, wear-resistance and renewability, the adsorption speed increases 30%.
Advantages of carbon adsorption in Gold CIL process:
- Coconut shell activated carbon greatly improves golf recovery from associated metal, significantly improves the economic benefit and production efficiency;
- Washing thickener adopts continuous discharging, which reduces multiple cycles of hydrothermal gold, recycle early; extends the time of pulp concentration, increases the leaching rate;
- Washing thickener achieves countercurrent washing, which has large volume and high washing efficiency;
3.

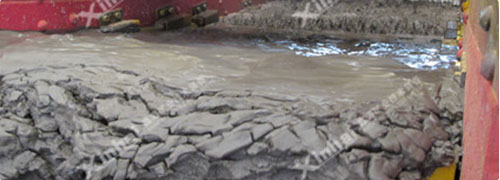

Carbon Acid Regeneration
Advantages of carbon acid regeneration in Gold CIL process:
- Ensures the minimum carbon gold loses during transmission, it lower the gold loses and the processing line is easy to maintain.
4.

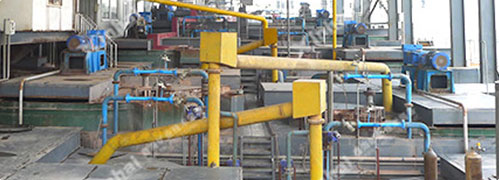

Pulp Agitation
Equipment：
Advantages of pulp agitation in Gold CIL process:
- Convey pulp fast, making pulp in small cycles;
- Reduce power consumption 70%;
- Solid materials suspend evenly;
- Activated carbon with low wear;
- High gold recovery rate.
5.

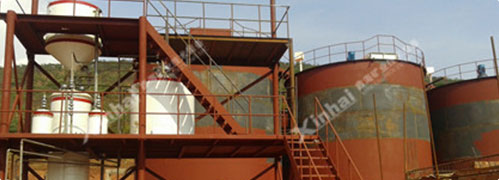

Gold Loaded Carbon Desorption
Equipment：
Advantages of desorption electrolysis system in Gold CIL process:
- Adopts high-temperature and high-pressure desorption (150℃，0.5Mpa), which can desorb 99% gold within 2-6 hours;
- Pregnant solution contains high concentrations of gold and silver Cyanide complex ions, and less impurity ions, after the process of Yantai Group efficient, low-powered and fast desorption electrolysis system, high purity solid gold can be obtained safely and economically.
Xinhia Global CIL Gold Projects Collection
2.
Cyaniding Leaching and Carbon Adsorption
Equipment：
Material:
specialcoconut shell activated carbon
Material feature:
special coconut shell activated carbon is featured with small hole, high reaction activity, wear-resistance and renewability, the adsorption speed increases 30%.
Advantages of carbon adsorption in Gold CIL process:
- special coconut shell activated carbon greatly improves golf recovery from associated metal, significantly improves the economic benefit and production efficiency;
- washing thickener adopts continuous discharging, which reduces multiple cycles of hydrothermal gold, recycle early; extends the time of pulp concentration, increases the leaching rate;
- washing thickener achieves countercurrent washing, which has large volume and high washing efficiency;
4.
Pulp Agitation
Equipment：
Advantages of pulp agitation in Gold CIL process:
- Convey pulp fast, making pulp in small cycles;
- Reduce power consumption 70%;
- Solid materials suspend evenly;
- Activated carbon with low wear;
- High gold recovery rate.
Xinhia Global CIL Gold Projects Collection

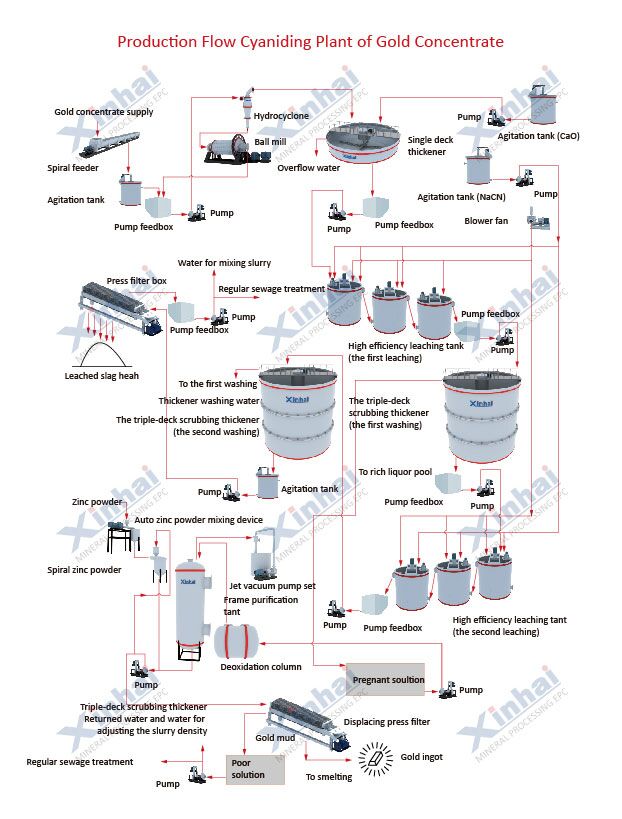

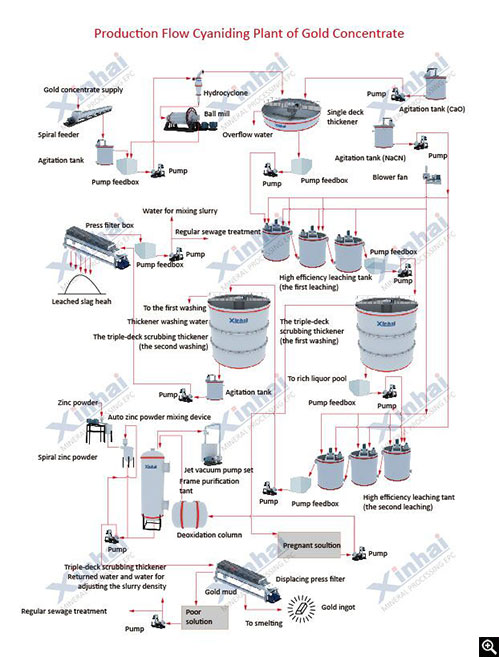

CIL Gold Process Flowchart
Cases
In January 2015, weundertook Tanzania 1200tpd gold project of a mining company, the project adopted Gold CIL process, after construction design and installation, it has been put into production now, the recovery rate of gold production line reached expected goal, the final gold leaching rate was 91.5%, which brought large amount of economic benefits for clients and obtained high praise from clients.

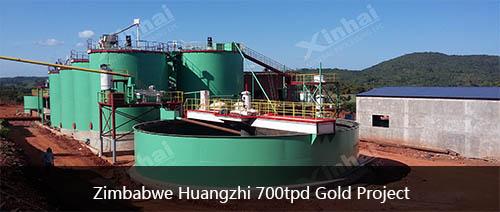

In March 2015, we took charge of African Zimbabwe Huangzhi 700tpd gold project, the plant is mainly quartzite gold mine, most is oxidized ore or primary ore with low sulfur ore, so we chose gravity separation + all-sliming CIL process, which achieved efficient recovery of gold, save 15% cost. Equipment still operate smoothly after put into production one year, customer are very satisfied with this result.
Class B Design Qualification, 20 Years of Gold Processing Experiences
we have make Class B design Qualification, set up mine design institute and mineral processing research institute, more than 200 professionals provide the technical support service for gold processing plant, Since its establishment 20 years, we have been committed to gold processing service the development and innovation of equipment, and has formed the complete gold processing system. we concentrates on providing the Turnkey Solution for Mineral Processing Plant that is research and design- complete equipment manufacturing and procurement- commissioning and delivery”, striving for building the international leading enterprise in gold processing plant industry.
EU Certification International Quality
"Create a global brand, based on global gold markets " has been one of the strategic thought of Yantai Group, depending on its professional gold processing service, we have got the EU certification, and ISO9001:2008 quality management system certification as early as in 2008, we are classified as the assured brand with advanced products and standard quality!
88 patents technologies, more than 500 mineral processing plants in the world
we currently has 88 patents technologies, the gold dressing plant projects spread among China, Southeast Asia, South America, Africa, Iran, Russia, Mongolia, North Korea and other places, and we have established offices around the world.
