Home > Products > Gold Extraction Equipment >Air Lifter

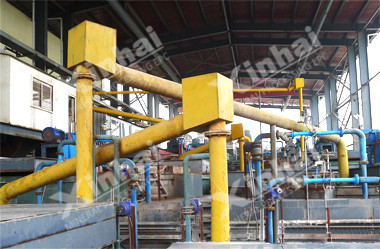

Air Lifter
- Product Introduction
- A slurry transporting equipment by compressed air
- Lifting Head
- 3-5m
- Product Feature
- No moving part
Advantages
Scientific and reasonable design, decrease the damage to carbon
High efficiency, the time of lifting carbon is 0.5~1 hours
Small volume, it is convenient to install on leaching agitation tank or adsorption tank; convenient operation and maintenance
Work Principle
Pressure air is inflated into air lifter, which reduces the air density of ore pulp pipe and causes the pressure difference between pipe and tank. By the action of pressure, ore pulps in tank are lifted by air lifter.

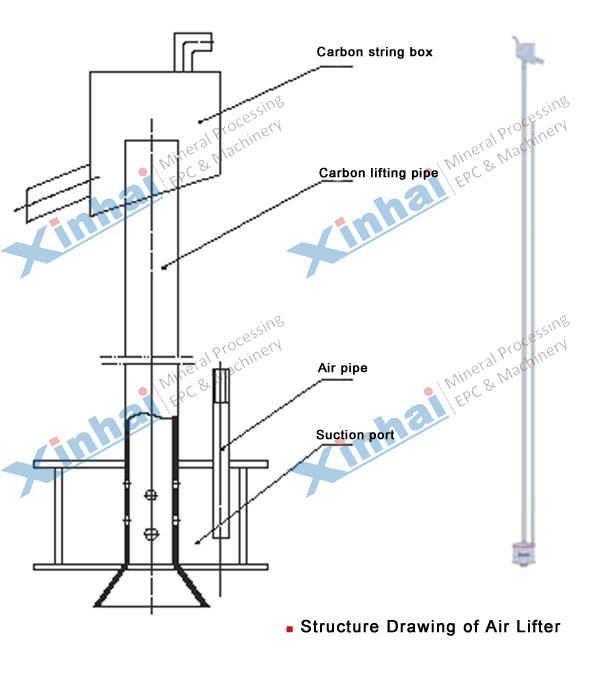

Product Structure
Technical Parameters
| Model | Carbon adsorption pipe specification | Air pipe specification | Application range |
| KT60 | Φ50×2.5 | DN20 | SJ2.0×2.5，SJ2.5×2.5，SJ2.5×3.15，SJ3×3.15，SJ3×3.5，SJ3.15×3.55 |
| KT100 | Φ108×4 | DN25 | SJ3.55×4，SJ4×4.5，SJ4.5×5，SJ5×5.6，SJ5.5×6，SJ7.5×8，SJ8×8.5 |
| KT125 | Φ133×4 | DN32 | SJ8.5×9 ，SJ9×9.5，SJ10.5×11 |
| KT150 | Φ159×4 | DN40 | SJ12×13 |
