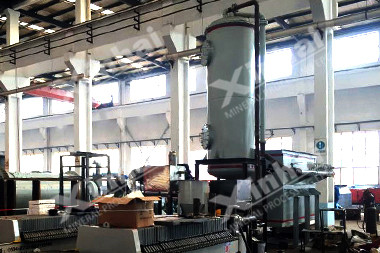

Zinc Powder Displacement Device

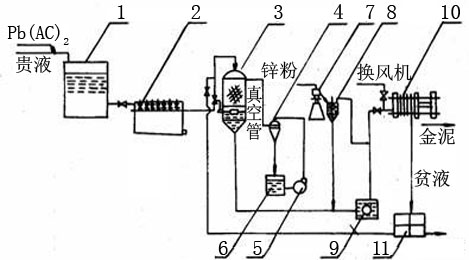

Zinc Powder Displacement Flow Sheet

• Pregnant solution storage pool

• Settle tank

• Deoxygenation tower

• Hydraulic jet pump

• Water pump

• Water tank

• Zinc powder feeder

• Zinc powder mixer

• Water sealing pump

• Frame filter press       Poor solution pool

Product Structure

Process and Equipment

Zinc powder displacement process has 3 steps including pregnant solution purification, deoxidation and zinc powder filtering replacement

1． Pregnant solution purification

Principle： Gold pregnant solution often contains suspended solids which should be removed before replacement. Pregnant solution purification is the process to remove suspended solid.

Equipment：

•

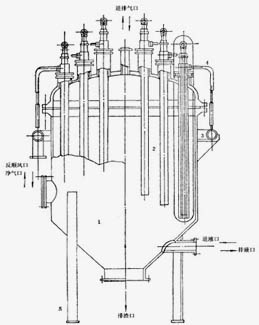

  Tube type filter

•

  Frame purification tank

•

  Frame press filter

2． Deoxidation

Work Principle： Dissolved oxygen in pregnant solution hinders displacement of zinc and gold

Equipment：

•

  Deoxidation tower

3．Displacement and filtering

Work principle：Including 2 steps adding zinc powder and displacement; when adding the zinc into pregnant solution, the displacement action starts. The displacement equipment finishes the displacement and gold mud filtration

Equipment：

a, Zinc powder adding

•

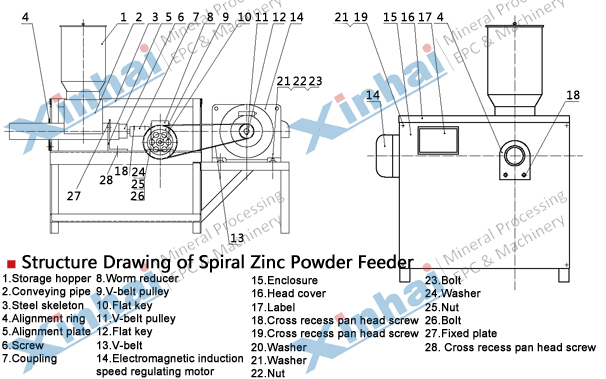

  Spiral powder feeder

•

  Belt type zinc powder feeder

•

  Disc type powder feeder

b, Displacement

•

  Zinc powder mixer

Product Application

The device is mainly aimed at gold ore containing silver. After purification and deoxidation, zinc powder displacement device is added, and finally the gold mud is obtained.

Technical Parameters
