Home > Products > Gold Extraction Equipment >Carbon Screen

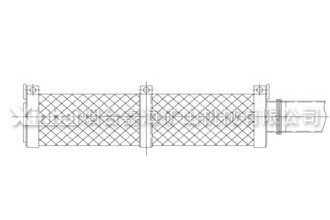

Carbon Screen
- Product Introduction
- An equipment for separation of carbon and slurry
- Frame diameter
- 100-500mm
- Product Application
- In the cyaniding carbon pulp plant, it is used to screen activated carbon in the leaching tank.
Advantages
No moving parts; the screen holes are not easy to block; simple structure; convenient operation and maintenance; low cost; long service life
The screen separates activated carbons from mineral pulps. As a result, mineral pulps flow to next leaching tank, while activated carbons remain in the current leaching tank.

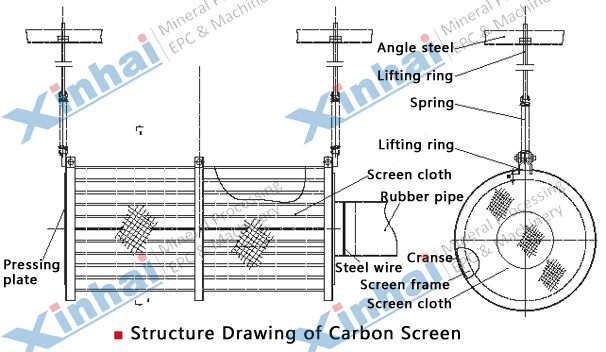

Product Structure
Technical Parameters
| Model | Frame diameter (mm) | Frame length (mm) | Screen hole specification (mesh) | Weight (kg) |
| SY100 | 100 | 1000 | 28 | 10 |
| SY125 | 125 | 1000 | 28 | 13 |
| SY200 | 150 | 1000 | 28 | 14 |
| SY250 | 200 | 1000 | 28 | 16 |
| SY300 | 300 | 1000 | 32 | 24 |
| SY500 | 500 | 1000 | 32 | 35 |
