High Frequency Dewatering Screen

Product Introduction: A multi frequency dewatering screen with large capacity and full dehydration
Capacity: ≤250t/h
Product Improvement: The efficient multi frequency dewatering screen adoptsscreen side opening holes, and the water flows out from the hole quickly accelerating the dewatering speed, in addition, it avoids the damage due to water splashed onto the motor.

CONSULT
Leave Message
Email

Advantages

High efficiency dewatering

screen

Yantai Group has many special technical designs in dewatering screen. The main deck of the screen slopes upwards and forms a 45° sloping with the back-deck section. Two vibration motors are installed horizontally. One is installed on the top of the other one. Unbalanced gravity produces rotary effect makes the screen work stably
Double vibration motor excitation, firm and compact structure, getting rid of thedefectsof traditional eccentric vibrator such as large structure, oil leakage, large wear, large noise, inconvenient repair, etc.
Yantai Group wear-resistant rubber lined on the side guard plate of Yantai Group dewatering screen protects it from wearing and reduces the pollution of iron.
Yantai Group dewatering screen uses the Yantai Group embedded wear-resistant urethane mesh, its life is 3-10 times longer than the traditional metal mesh’s, and it avoids direct collision of metal frame and ore.
Vibration damper for dewatering screen is used Yantai Group rubber damper column, which is more suitable for wet conditions, and is durable.

Work Principle

High frequency dewatering screen

The product adopts double vibration motor as power supply: The two motors that rotate synchronously and reversely and centrifugal force is produced by two groups of eccentric block. This makes the screen body periodical to-and-fro moving along the direction of straight line, which is for the purpose of dehydration. The screen frame is connected by the high-intensity bolts, so the structure is stable and durable.

Product Structure

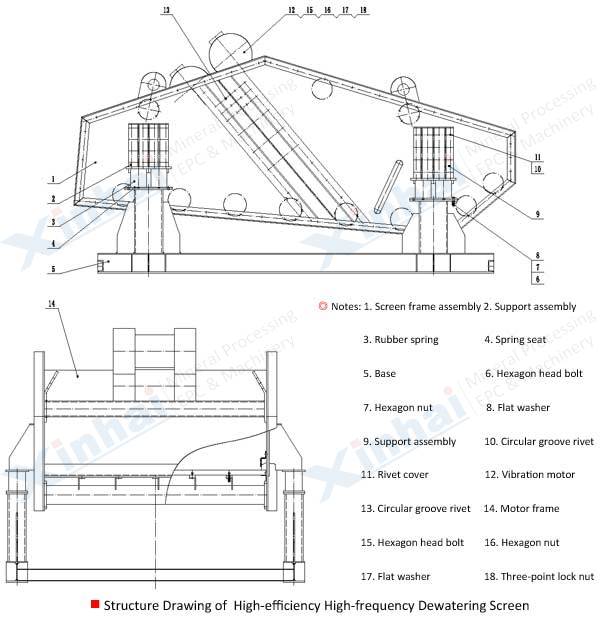

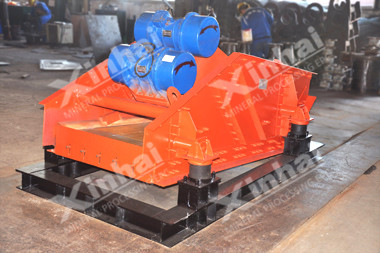

High Frequency Dewatering Screen

Product Application

High efficiency dewatering screen

Yantai Group high efficiency multi frequency dewatering screen can be widely used in tailings dry stacking, fine mineral dewatering, chip removing, carbon-in-pulp separation etc.

The efficient multi frequency dewatering screen is particularly suitable for processing fine minerals. In addition, it combined with Yantai Group cyclone is more efficient and can be widely used for tailings dry stacking, concentrate dewatering and so on.

Technical Parameters

Model	Min. 30% Solid Feeding Slurry Concentration by Volume						Unit Motor Power (kW) X Quantity (set)
	Coal Fine Theoretically -0.5+0.1(mm) Specific Gravity 1.5		Coarse Sand Approxilly- 5(mm) 100%, -0.6(mm)50%, Specific Gravity 2.7		Fine Sand 90% -1(mm) Specific Gravity 2.7		980 (r/min)	1460 (r/min)
	1460 (r/min)	980 (r/min)	1460 (r/min)	980 (r/min)	1460 (r/min)	980 (r/min)	980 (r/min)	1460 (r/min)
VD6	6~8	10 ~13	14	28	10	21		2 X2
VD9	9~12	15 ~20	21	42	16	32	3X2
VD12	15 ~19	24 ~30	33	67	25	50	2.6X2	4X2
VD15	30 ~35	50 ~60	63	125	47	94	2.4X4	2.25X4
VD18	35~45	60 ~80	77	153	57	115		3.7X4
VD21	—	85~100	—	225	—	164	15	—
VD24	—	95~110	—	250	—	190	15	—
