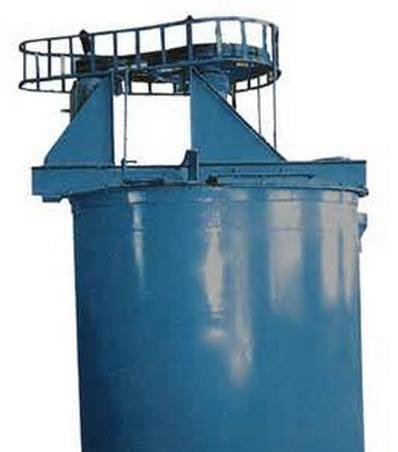

High Efficiency Agitation Tank

High Efficiency Agitation Tank
Introduction
Agitation equipment which forces the slurry to take up and down circulation
Effective Volume
0.58~45m3
Product Improvement
Umbrella shaped impeller presses the slurry, so that the slurry takes up and down circulation along draft tube, which makes reagents and slurry mix well

Advantages

 High efficiency agitation tank

  • Advanced structure of impeller, strong stirring ability
    The impeller of Yantai Group high efficiency agitation tank adopts umbrella shaped with large diameter and linear velocity to enhance the agitation and circulation capability.

  • The enhancement of circulation capability improves floatation index
    The baffle can compress negative pressure to a limited space and improve suction capability. As a result, the circulation capacity is enhanced.

3D Exploded Video

Every single part and working principles of High Efficiency Agitation Tank are showed in Yantai Group 3D video, which is really convenient for you to see the structure and working principles of those large equipment.

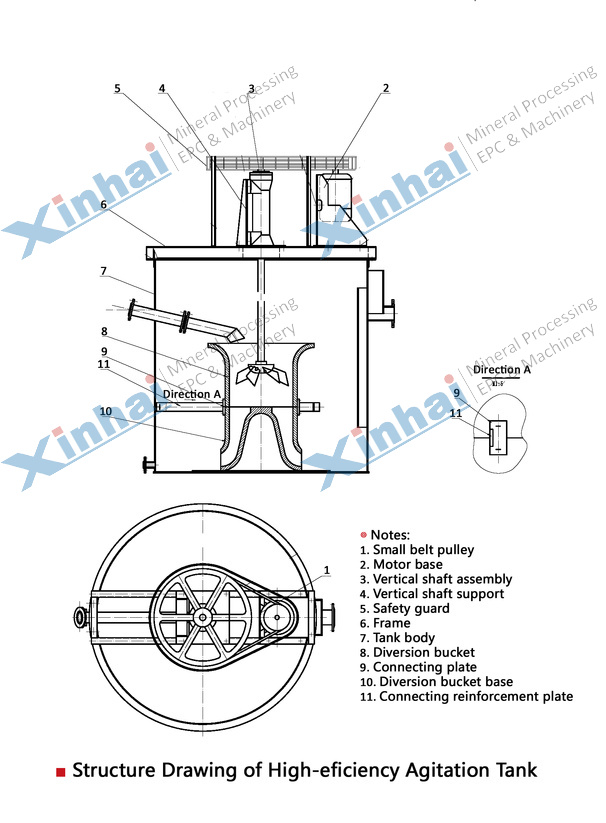

Product Structure

Product application

High efficiency agitation tank is mainly applied in slurry stirring before floatation, chemical and construction industry, cyanide chemical plant, sewage treatment plant, and coal plant etc.

Technical Parameters

(Better using according to the own situation and guidance of technician)

Model Effective Volume (m3) Rotating Speed of Impeller (r/min) Diameter of Impeller (mm) Motor Model Motor Power
(kW)
Weight
(kg)
GBJ-1000X1000 0.58 530 240 Y112M-6 2.2 548
GBJ-1250X1250 1.15 350 240 Y100L2-4 3 820
GBJ-1500X1500 2.2 320 420 Y132M2-6 5.5 1350
GBJ-2000X2000 5.46 240 560 Y160M-6 7.5 3173
GBJ-2500X2500 11.2 232 560 Y180L-6 15 3939
GBJ-3000X3000 19.1 220 700 Y225S-8 18.5 6676
GBJ-3500X3500 31 248 700 Y225M-8 22 7581
GBJ-4000X4000 45 153 1000 Y250M-8 37 9560
