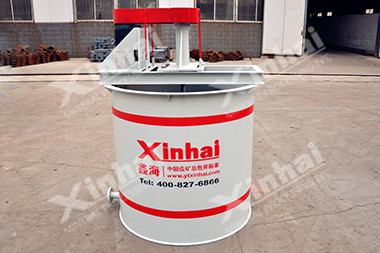

Agitation Tank for Chemical Reagent

Introduction: An agitation equipment used in reagents preparation
Effective Volume: 0.094～ 4.4m³
Product improvement: The cylinder is lined with Yantai Group wear-resitant rubber to resist the corrosion of reagents

CONSULT
Leave Message
Email

Advantages

Reagent agitation tank

Excellent wear-resistance, long service life
Strong agitation capability

Work principle

Agitation tank for chemical reagent for chemical reagent adopts barrel shaped radiation circular spiral impeller for mixing operation by mechanical stirring method. The motor drives V- belt transmission device which drives the impeller. Reagents mix evenly under the rotation of impeller preparing for next step that mix the ore slurry and reagents.

Agitation tank for chemical reagent is used for reagents preparation before floatation.

Product structure

Technical Parameters

（Better using according to the own situation and guidance of technician）

Model	Effective Volume (m3)	Rotating Speed of Impeller (r/min)	Diameter of Impeller (mm)	Motor Model	Motor Power (kW)	Weight (kg)
BJW-500X600	0.094	493	200	Y80L-4	0.55	120
BJW-750X750	0.25	530	240	Y100L-6	1.5	230
BJW-750X1000	0.35	530	240	Y100L-6	1.5	270
BJW-1000X1000	0.58	530	240	Y100L-6	1.5	420
BJW-1250X1250	1.15	492	310	Y100L1-4	2.2	490
BJW-1500X1500	2.2	320	400	Y132S-6	3	1310
BJW-2000X2000	5.46	230	550	Y132M2-6	5.5	1720
BJW-3000X3000	14.8	210	700	Y225S-8	18.5	4613
