Efficient Deep Cone Thickener
- Product Introduction
- A independently developed deep cone thickener, the underflow concentration up to 70%
- Capacity
- 60～880m3/h
- Product Improvement
- Large angle cone, high underflow concentration
Advantages
Small area taken, large capacity
Slender body, flocculants are added in the process of concentrate; accelerate the particle settlement and dewatering process.
Reasonable structure, low energy consumption, high efficiency and low operation and maintenance cost

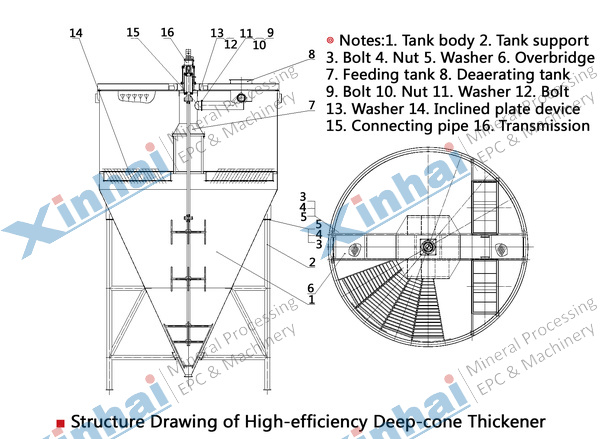

Product Structure
Deep cone thickener also called paste thickener is higher than other thickeners which consists of deep cone, feeding device, stirring device, control box, reagents adding device, automatic control system, etc.
Efficient deep cone thickener is mainly applied in thickening of minerals or other fine materials.
Technical Parameters
| Motor | Tank Diameter(mm) | Tank depth (mm) | Sedimentation Area(m2) | Capacity (m3/h) |
|---|---|---|---|---|
| GSNG-3 | 3000 | 4404 | 21 | 60-70 |
| GSNG-6 | 6000 | 8810 | 85 | 210-260 |
| GSNG-9 | 9000 | 13500 | 310 | 570-700 |
| GSNG-12 | 12000 | 17500 | 510 | 800-1200 |
| GSNG-15 | 15000 | 19000 | 1200 | 1000-1500 |
| GSNG-18 | 18000 | 22000 | 2000 | 1400-2100 |
| GSNG-20 | 20000 | 22800 | 2700 | 2100-2600 |
