Hydraulic Motor Driving Center Thickener

Hydraulic Motor Driving Center Thickener
Product Introduction
A thickener with center hydraulic driving and hydraulic automatic rake lifting
Sedimentation Area
28~1590 m2



Advantages

  • Simple and convenient installation & maintenance

  • The simple internal structure is convenient for the layout of hydraulic and electric control system.

  • Control the speed of rake by regulating oil volume of oil pump, so as to achieve the best state.

  • Automatic rake lifting and dropping

Product Structure

Thickener

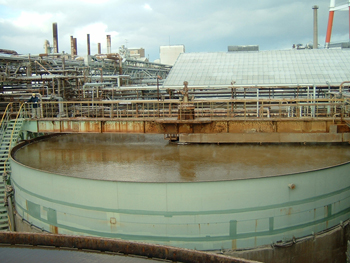

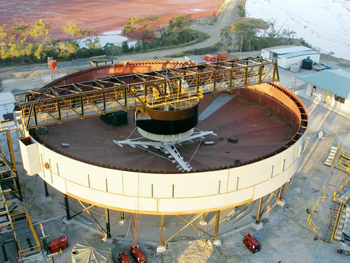

Application

Thickener
  • Mainly used for clarification and concentration of coal slurry or pulp

  • Also used for dewatering of solid-liquid separation in chemical industry, metallurgy industry, etc.

Technical Parameters

Technical Parameters Table of Hydraulic Motor Driving Center Thickener

Model Thickening Tank Diameter (m) Thickening Tank Center Depth (m) Subsidence Area (m2) Time of Harrow Rack Rotation (min) Height of Lifting Harrow (mm) Capacity
(t/d)
Drive Power
(kW)
NZY-6 6 3 ~3.2 28 2.5 ~5 350 50~100 3
NZY-9 9 3.5~3.8 63.6 3~5 350 120~175 3
NZY-12 12 3.5~3.8 113 4~7 350 200~300 4
NZY-15 15 4 ~4.5 176 5~10 450 350~400 5.5
NZY-18 18 4 ~4.5 254 8~12 450 600~800 5.5
NZY-20 20 4 ~4.5 314 8~12 450 800~1000 7.5
NZY-24 24 4.5~5.5 450 9~12 450 1000~1300 7.5
NZY-30 30 4.5~5.5 706 10 ~14 450 1500~1800 11
NZY-38 38 6.5 ~8 1134 15 ~22 600 1800~2200 15
NZY-40 40 6.5 ~8 1256 15 ~22 600 2200~2400 15
NZY-45 45 6.5 ~8 1590 15 ~22 600 2400~2800 15
NZY-53 53 6.5 ~8 2206 15 ~22 600 3000~3500 15
NZY-60 60 7 ~8.5 2827 16~50 600 3500~5000 18.5
NZY-75 75 8~10 4418 20 ~80 800 7500~10000 22
NZY-100 100 8~10 7853 35~80 800 10000~15000 30
