Pendulum Feeder

Pendulum Feeder
Product Introduction
A feeder with periodic reciprocating motion for fine particles
Capacity
4.5~25t/h
Product Improvement
Worm gear reducer, compact structure, reliable sealing device

Advantages

Pendulum feeder is installed under the storage tank or hopper to convey the materials with particle size less than 50mm and the materials that are dry and not easy to agglomerate such as ore stones, coal blocks etc. It is not suitable to convey powder which is easy to block feeding, and makes powder fly

Work Principle

The machine is installed beneath the discharging opening of ore bin. Minerals fall in the ore feeding box from ore bin. When it works, via coupler, electric motor drive turbine reducer to operate; the pendulum plate of chute begin the reciprocal movement through eccentric wheel on the output shaft of turbine reducer. So, the mineral feeding process is finished. The mineral feeding quantity can be controlled by adjusting eccentric wheel or regulating the revolving speed of motor.

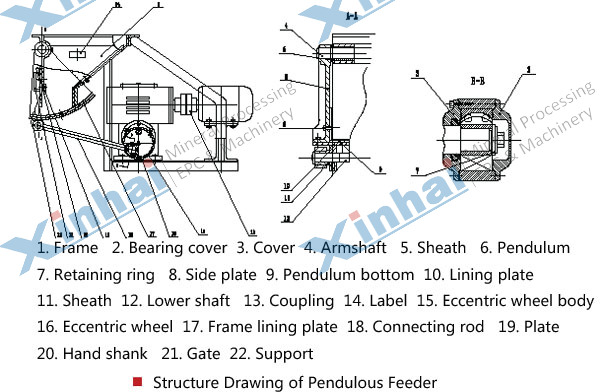

Product Structure

pendulum feeder

Product Application

The pendulum feeder is suitable for crushing and screening.In the production process,it conveys the blocky, granular materials uniformly,periodically, and continuously from the storage bin to the next device. It is widely used in metallurgy, mining, ore dressing, building materials, chemical industry, combined equipment, and it has the advantages of simple structure, low price, convenient repair and operation etc.

Technical Parameters

Model Inlet
(LXW)
(mm)
Outlet
(LXW)
(mm)
Stroke of Eccentric Wheel (mm) Frequency
(n/min)
Max. Feed Size (mm) Feed
Capacity
(t/h)
Motor
Model
Motor
Power
(kW)
Rotating Speed of Motor (r/min) Weight
(kg)
BG250X250 250X250 250 X (30~125) 0~90 46 25 4.5 Y80L-4 0.55 1390 130
BG300X300 300 X300 300 X (30~125) 46 30 6.5 Y802-4 0.75 1390 272
BG400X400 400 X400 400 X (50~130) 0~170 45.5 35 12 Y90S-4 1.1 1410 558
BG600X600 600 X600 600 X (50~150) 0 ~157 48 50 40 ~80 Y100L-4 1.5 940 613
