Plate Feeder
- Product Introduction
- A feeding machine with impact resistance and large convey capacity
- Capacity
- 15~217m3/h
- Product Improvement
- A reducer with large speed ratio, speed adjustment motor
Product Feature
Compact structure, reliable quality
Wide application, high efficiency
Advanced technology

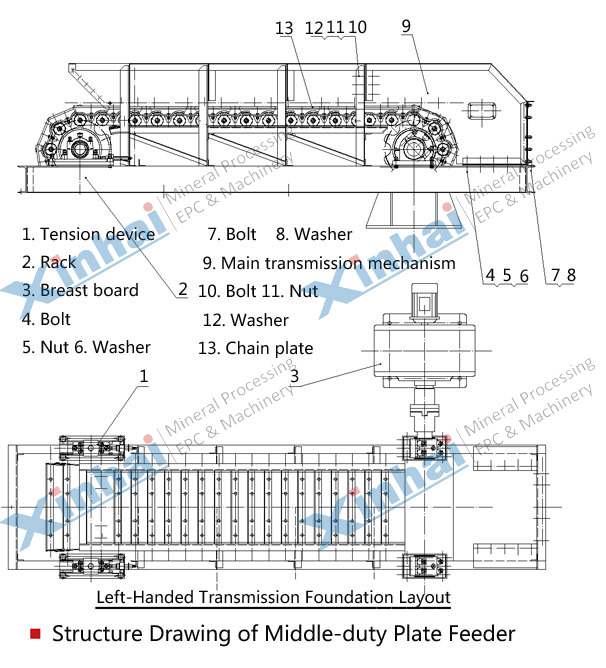

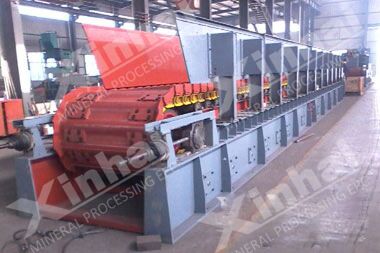

Product Structure
Plate feeder has light type, medium type and heave type
Medium and heavy type are the common plate feeder consisting of
1、Transmission device: motor, speed reducer, coupling etc. 2、Head wheel: head frame, driving shaft, chain wheel, transmission shaft and front frame 3、Chain 4、Chain plate 5、Tail wheel: chain wheel, rear rack, tension device etc. 6、Support and side board 7、Intermediate frame
Product Application
Plate feeder can deliver bulk materials with particle size ≤160mm. It is used to continuously and uniformly feed minerals to devices like crushing or conveying equipment in nonferrous metals, mining, cement, fertilizer, chemical, metallurgical, paper, mining, dressing, ingredients industries, etc. It's good at feeding the bulk materials whose apparent density of a continuous uniformly no more than 12400kg/m3, block weight not exceeding 140kg, temperature is not higher than 140℃.
Technical Parameters
| Model | Chain Plate | Feed Size (mm) |
Capacity (m3/h) |
Motor | Overall Dimension (LXWXH) (mm) | Weight (kg) |
|||
| Width (mm) |
Center Distance of Chain Wheel (mm) | Speed (m/s) |
Model | Power (kW) |
|||||
| GBH80-2.2 | 800 | 2200 | 0.01 ~0.053 | ≤300 | 15 ~91 | Y132M-4 | 7.5 | 3840X2850X1185 | 3722 |
| GBH80-3 | 3000 | XWED106-385-4 | 4 | 4868X2705X1060 | 4014 | ||||
| GBH80-4 | 4000 | Y132M-4 | 5640X2986X1185 | 5087 | |||||
| GBH80-5.8 | 5800 | 0.18 | ≤300 | 15 ~91 | XWED7.5-8215A-231 | 7.5 | 7760x2823.5x1321 | 6526.7 | |
| GBH100-1.6 | 1000 | 1600 | ≤0.15 | ≤350 | 22~131 | Y160M-6 | 3240X3026X1235 | 3981 | |
| GBH100-3 | 3000 | 4640X3114X1235 | 4548 | ||||||
| GBH100-4 | 4000 | 0.01 ~0.053 | 22~131 | XWED106-385-4 | 4 | 5648x2890x1160 | 5086 | ||
| GBH120-1.8 | 1200 | 1800 | ≤0.15 | 300-400 | 35~217 | Y160M-6 | 7.5 | 3440X3314X1235 | 3965 |
| GBH120-2.2 | 2200 | 3840X3314X1285 | 4238 | ||||||
| GBH120-2.6 | 2600 | 4240X3314X1285 | 4572 | ||||||
| GBH120-3 | 3000 | XWED7.5-8215A-273 | 4960X3150X1434 | 4886(Exclude Reducer) |
|||||
| GBH120-4 | 4000 | Y160M-6 | 5640X3402.5X1285 | 6100 | |||||
| GBH120-4.5 | 4500 | XWED7.5-8215A-273 | 6460X3150X1434 | 6350.6 (Exclude Reducer) |
|||||
| GBH120-6 | 6000 | 300-400 | 35~217 | XWED11-8225B-273 | 11 | 7960x3242x1434 | 8210 | ||
