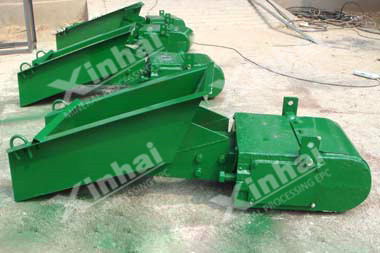

Electromagnetic Vibrating Feeder
- Product Introduction
- A feeder with simple structure and suitable for non-sticky materials
- Capacity
- 7~1700t/h
- Product Improvement
- 1、Transporting materials relying on electromagnetic vibrating
- 2、Stepless adjustment feeding
Advantages
Small volume, light weight, simple structure, convenient installation, convenient repair, low operation cost
Adoption the principle of the mechanical vibration, and less energy consumption.
Change the volume of flow at any time
Centralized control and automatic control of production process
Small wear of feeding tank
The feeding tank made of alloy-steel plate could convey heat and corrosive materials
Work Principle
The electromagnetic vibrating feeder utilizes electromagnetic vibrating device to drive minerals to reciprocate in the direction of dip. When the vertical component of accelerated speed of feeder exceeds accelerated speed, minerals are tossed upward and leap forward in parabolic fashion. It takes 1/5 second to finish the rising and falling. The chute vibrates for one time and subsequently the minerals are tossed for one time. The chute vibrate at a frequency 3000/minute. Correspondingly, minerals are tossed upward and leap forward. So minerals can continuously and uniformly move forward and feeding is achieved.

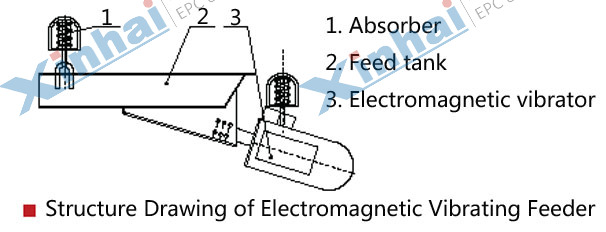

Product Structure
Electromagnetic vibrating feeder is composed of Ⅰ、Feeding groove Ⅱ、Speed reducer Ⅲ、Electromagnetic vibratorⅣ、Control cabinet, as chart shown
Product Application
It is widely used in mining, metallurgy, coal, building materials, light industry, chemical industry, electric power, food and other industries. It is used for automatic matching, quantitative package and automatic regulating process. It can feed lump, granular and powdered materials from the storage silo or hopper to devices uniformly or quantitatively.
Technical Parameters
| Model | Tank Dimension (LXWXH) (mm) | Feed Size (mm) | Horizontal Feed Amount (t/h) | Feed Amount (t/h) | Power (kW) |
Overall Dimension (LXWXH) (mm) | Weight (kg) |
| GZ1 | 600X200X100 | 50 | 5 | 7 | 0.06 | 910X376X485 | 80 |
| GZ2 | 800X300X120 | 10 | 14 | 0.15 | 1175X608X600 | 165.5 | |
| GZ3 | 900X400X150 | 75 | 25 | 35 | 0.2 | 1325X578X675 | 223 |
| GZ4 | 1100X500X200 | 100 | 50 | 70 | 0.45 | 1616X762X814 | 462 |
| GZ5 | 1200X700X250 | 150 | 100 | 140 | 0.65 | 1815X840X980 | 656 |
| GZ6 | 1600X900X250 | 200 | 150 | 210 | 1.5 | 2410X10925X1500 | 1252 |
| GZ7 | 1800X1100X250 | 250 | 250 | 350 | 3 | 2800X1330X1710 | 2017 |
| GZ8 | 2200X1300X300 | 300 | 400 | 560 | 4 | 3302X1556X1995 | 3153 |
| GZ9 | 2400X1500X300 | 350 | 600 | 840 | 5.5 | 3515X1776X2200 | 3750 |
| GZ10 | 2500X1800X375 | 500 | 750 | 1050 | 4X2 | 3630X2500X2235 | 6491 |
| GZ11 | 2800X2000X375 | 1000 | 1400 | 5.5X2 | 4060X2640X2919 | 7680 | |
| GZ12 | 3000X2200X400 | 1200 | 1500 | 15 | 5260X2860X2563 | 8840 | |
| GZ13 | 3200X2500X450 | 1300 | 1600 | 6394X3040X2864 | 9920 | ||
| GZ14 | 3500X2500X450 | 550 | 1500 | 1700 | 18.5 | 7475X3802X3000 | 11000 |
