Disc Feeder
- Product Introduction
- A traditional continuous feeding equipment for powder material
- Capacity
- 0~88.4t/h
- Product Improvement
- Install speed adjustment motor according to need; control feeding volume by adjusting the rotation speed of disc
Advantages
Stable working and easy operation
Wide application, energy saving and efficient
Large bearing capacity and stable operation
Simple structure; even feeding; convenient maintenance; the best choice for feeding process of powder materials
Work Principle
Bulky materials entering into the cylinder from the hopper accumulate by itself weight on the disk. The natural angle of material is controlled on the disk by adjusting the gap between the sleeve and disc. When the disk rotates, the materials are scraped into accepted hopper by unloading knife, so with the continuous rotation of the disk, the materials are fed evenly. Adjust the gap between the unloading knife and the disk to control the feeding volume.

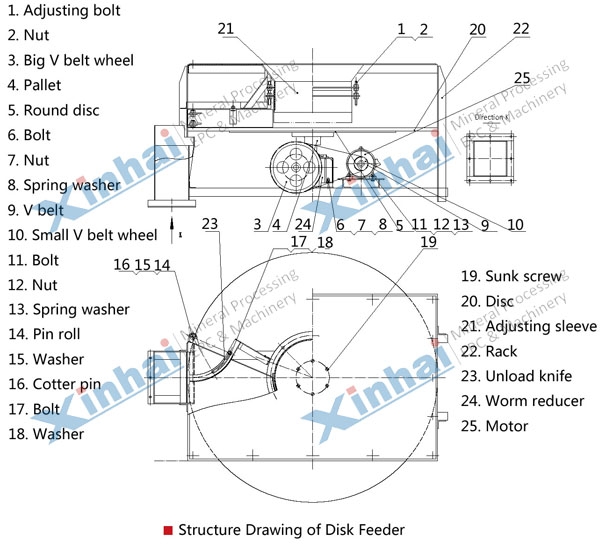

Product Structure
Disc feeder consists of driving device, main body, metering belt conveyer and metering device. Feeder and belt conveyor is driven by the same driving device. The electromagnetic clutch device of this drive controls the starting& stopping and function conversion of feeder. Speed of metering belt conveyor is less than 1m/s.
Product Application
It is applicable to feed non viscous material, but not suitable for powder materials with good flow ability. The suitable feeding material: powder, granular or small bulk materials such as coal powder, cement, clinker, limestone, clay, gypsum, slag etc.
Technical Parameters
| Type | Model | Disk Diameter (mm) | Rotating Speed of Disk (r/min) | Max. Feed Size (mm) | Feed Capacity (t/h) | Motor Model | Motor Power (kW) |
Weight (kg) |
| YG300 | 300 | 10. 0 | 20 | 0~ 1. 8 | Y80L- 4 | 0. 55 | 115 | |
| YG400 | 400 | 10. 7 | 0~ 2. 6 | Y90L- 6 | 1. 1 | 120 | ||
| YG500 | 500 | 0~ 3. 3 | 124 | |||||
| Close | YG600 | 600 | 10. 0 | 0~5. 0 | 130 | |||
| Hanged | YG800 | 800 | 9 | 30 | 0~8. 0 | Y80L- 4 | 0.55 | 195 |
| YG1000 | 1000 | 9 | 30 | 0~ 12 | Y90L- 4 | 1. 5 | 263 | |
| YG1500 | 1500 | 7 | 40 | 0~ 22 | Y132M2-6 | 5. 5 | 755 | |
| YG2000 | 2000 | 5 | 50 | 0〜80 | Y160L-6 | 11 | 2517 | |
| DK600 | 600 | 7. 53 | 25 | 1. 8~ 3. 9 | Y90L- 6 | 1. 1 | 410 | |
| DK800 | 800 | 7. 53 | 30 | 3. 5~ 7. 6 | 600 | |||
| DK1000 | 1000 | 7. 50 | 40 | 1.8〜16.7 | Y100L- 6 | 1. 5 | 725 | |
| Open Hanged |
DK1300 | 1300 | 6. 5 | 50 | 4. 3~27. 9 | Y132S- 6 | 3 | 846 |
| DK1600 | 1600 | 6 | 60 | 7.03~48.6 | Y132M1- 6 | 4 | 1980 | |
| DK1800 | 1800 | 5 | 70 | 9.26~60 | Y132M2- 6 | 5.5 | 3070 | |
| DK2000 | 2000 | 80 | 13.6~88.4 | Y132M2- 6 | 3260 |
