ZSW Vibrating Feeder

ZSW Vibrating Feeder
Product Introduction
A mechanical vibrating feeding equipment with rough screening function
Capacity
96~560t/h
Product Improvement
1、Baseboard of feeding tank adopts “Blind plate + screen” to pre-screen the small block materials
2、Double eccentric shaft vibrator

Advantages

Stable operation, reliable work, long service life, continuous and feeding for crushing, rough screening, and it is widely used in mineral processing, building materials, silicate and chemical industry etc.

Work Principle

The vibration exciter is composed of two eccentric shafts with particular position. The large linear vibration force produced by motor and the rotation of two eccentric shafts vibrates the machine. The materials are sliding and thrown so that it could move on. When the materials pass the screen bars, the small ore falls through the clearance of screen bars.

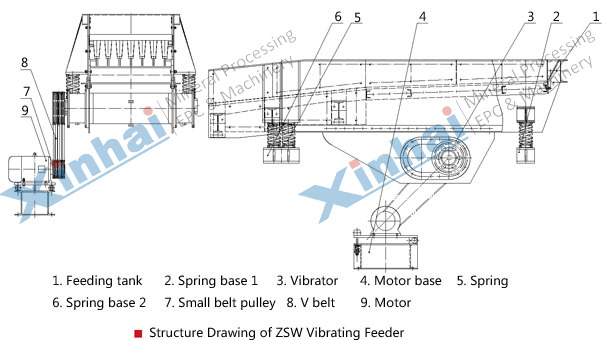

Product Structure

ZSW series vibrating feeder is composed of vibrating frame, spring, vibrator, motor vibration frame and motor etc.

ZSW vibrating feeder

Product Application

  • Mainly applied in feeding for conveyor, bucket type lifting machine, crusher, ball mill, and also used in automatic control system to realize the automation of production process.

  • Feeding for coarse crusher, screening fine materials to increase crusher capacity

  • For transporting ferrous or non-ferrous metal ores, building materials but sticky wet material

  • Widely used in metallurgy, mining, mineral processing, building materials, chemical industry, and other industries

Technical Parameters

Model Tank Dimensions (mm) Max. Feed Size (mm) Feed Capacity (t/h) Rotating Speed of Eccentric Shaft (r/min) Motor Power
(kW)
Weight
(kg)
ZSW380X95 3800X950 500 96~160 800 11 4082
ZSW420X110 4200X1100 500 110~180 800 15 4149
ZSW490X110 4900X1100 500 115~192 800 15 4263
ZSW590X110 5900X1100 630 350~500 800 22 6130
ZSW600X130 6000X1300 750 400~560 800 7800
